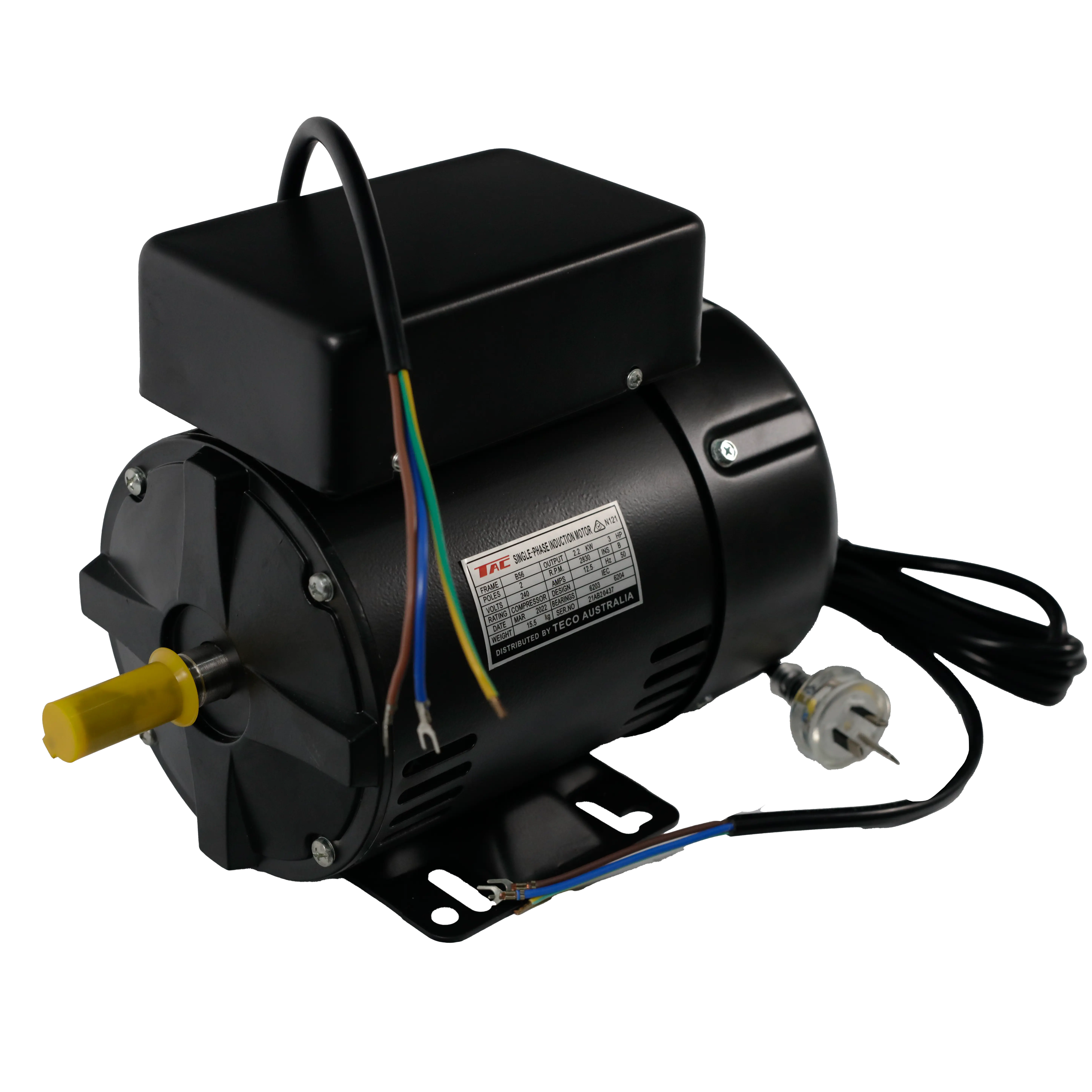

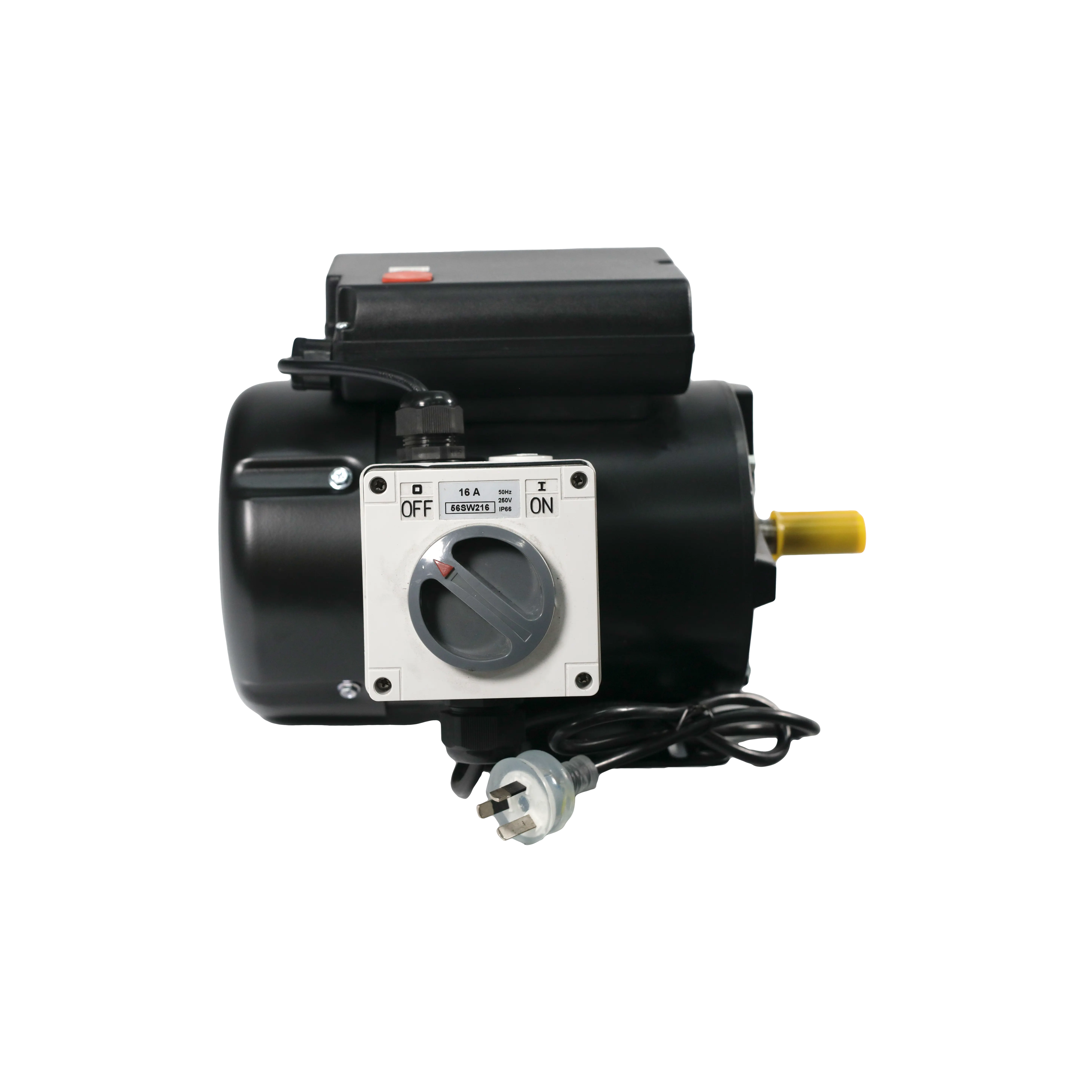

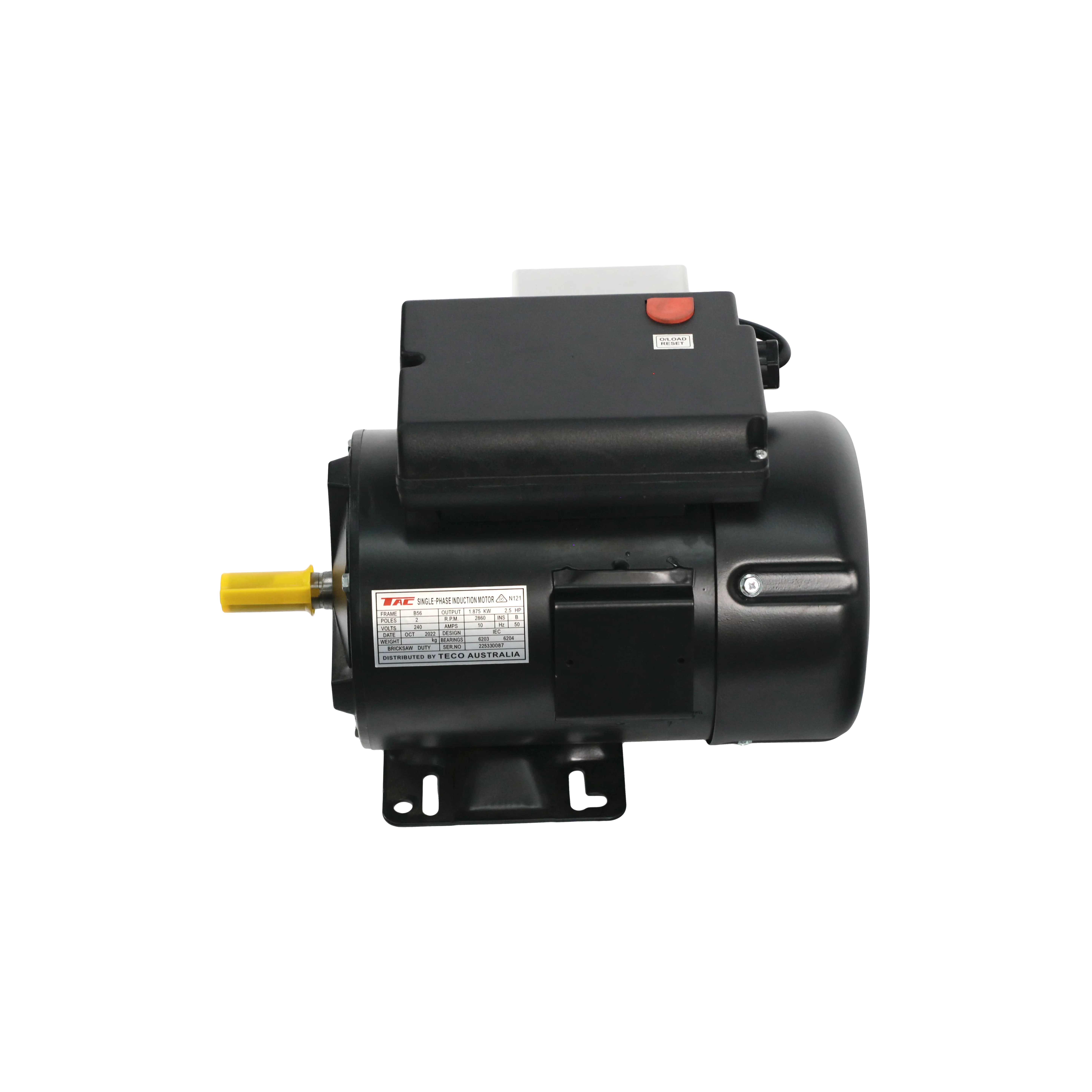

• Imperial frame motors to AS1360
• 0.25kW to 0.75kW
• Frame size B56
• Totally Enclosed Fan Cooled (IC411)
• 240 Volts Single Phase 50 Hz and includes manual overload protection
• Highest quality insulation system utilizing Class H and F materials
• Low temperature rise for substantial thermal reserve
• Continuous rated, duty type S1
• Capacitor Start, Capacitor Run / Induction Run for good starting torque
• Rolled steel shell frame with cast iron endshields
• Steel terminal box and fan cover
• IP44 protection rating
• Foot Mounted
• Wide range of options available
• 1 year warranty

• The motors range from 0.25kW to 0.75kW, providing a suitable power output for various applications
• Totally Enclosed Fan Cooled promotes efficient cooling and protects the motor from dust and moisture, ensuring reliable performance and longevity.
• The motor operates on a commonly available single-phase power supply safeguarding it from excessive current and preventing damage.
• High-Quality Insulation System ensures excellent electrical insulation properties, enhancing motor reliability and safety.
• Low Temperature Rise providing a significant thermal reserve and allowing for prolonged usage without overheating.
• Continuous Rated, Duty Type S1 ensuring consistent performance without interruption.
• Capacitor Start, Capacitor Run / Induction Run allowing the motor to effectively handle initial loads and start smoothly.
• Rolled Steel Shell Frame with Cast Iron End shields provides durability, strength, and efficient heat dissipation for reliable motor operation.
• Steel Terminal Box and Fan Cover offer robust protection
• Foot Mounted ensures stability during operation and simplifies installation, allowing for easy integration into existing systems.
